পণ্যের বিবরণ:
প্রদান:
|
পণ্যের নাম: | টিপার ডাম্প ট্রাক | মডেল: | ZZ3317N3867W |
---|---|---|---|
ড্রাইভ প্রকার: | LHD 8X4 | নির্গমন মান: | ইউরো 2 |
ইঞ্জিন: | WD615.47, 371HP | কার্গো বডি: | 7800*2300*1500mm |
বোঝাই ক্ষমতা: | 40-60 টন | ||
লক্ষণীয় করা: | commercial dump truck,sinotruk howo dump truck |
Description:

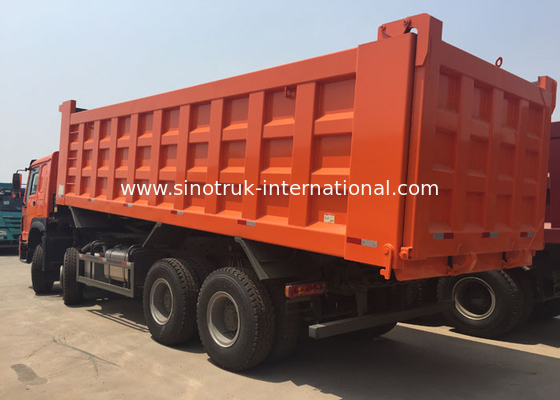

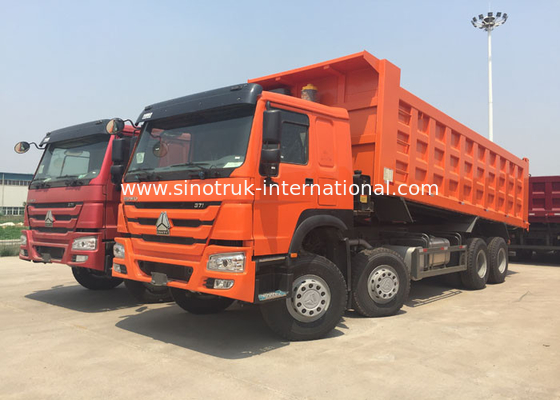

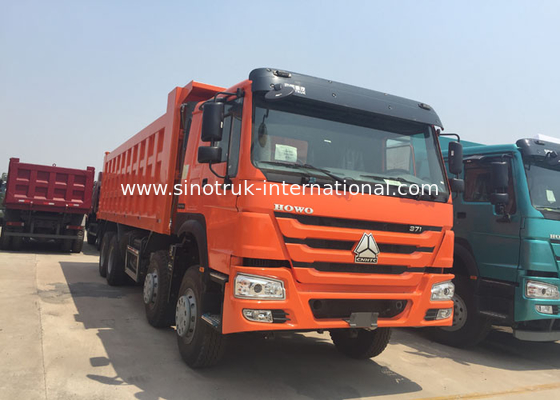

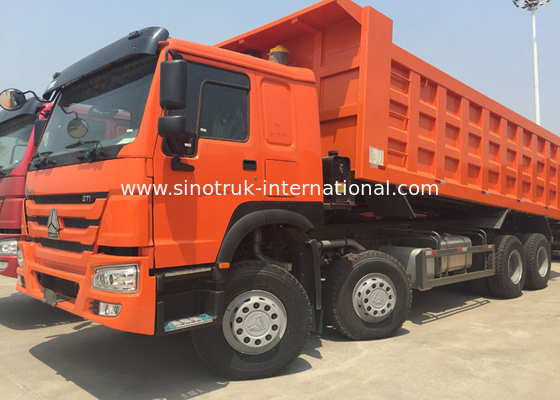

Dump Truck SINOTRUK HOWO 371HP 12 Wheels LHD 31tons 20-30CBM ZZ3317N3867W
This type truck is the famouce brand of CNHTC group in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This type truck need more wide road for the lenght of the whole truck is longer than 6X4 and 4X2 type truck. full expression of heavy duty truck concept. Delicate design, excellent technology, which have the advantages of Comfort, safety, reliability, electronic level geared to international level. Low fuel consumption.
Which is the most famouse brand of heavy duty truckIt in China. It's also the biggest exported quantity of China brand trucks in all over the world. Abundant truck prodcuts can meets customers demands very well.
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 etc.
Power range: 266HP - 420HP.howo Leader In Heavy Duty Truck Industry Driving King On The Road.
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system.
Specification:
Dump Truck SINOTRUK HOWO 371HP 12 Wheels LHD 31tons 20-30CBM ZZ3317N3867W |
||||
Model | ZZ3317N3867W | |||
Drive Type | 8×4 | |||
Engine |
|
|||
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 1800+3800+1350(mm) | |||
Overall dimension | 10745×2496×3450(mm) | |||
Cargo body |
7800×2300×1500(mm),Bottom:8mm, Side:6mm |
|||
The curb weight | 15320(Kg) | |||
Gross weight | 31000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1)excellant apperance of cabin, safety, reliable
2)based on strong technical support and top level technology make the trucks with high
quality and more reliable
3)with all kinds of truck model, which can fulfil your requirements
4)the key parts adopt the world's top technology products
5) strong enough engine
6)usually choose the standard cargo body structure
7)using the good quality steel plate, make it has a long service life
8)The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
9)competive price, cost-effective
10)quick and efficient spare parts supply bring you more convenient
11)fast delivery time, we can arange production according to your needs exactly and
quickly
12) professional import and export dealing precedure, make customs clearance more high efficiency
13)low fuel consumption
