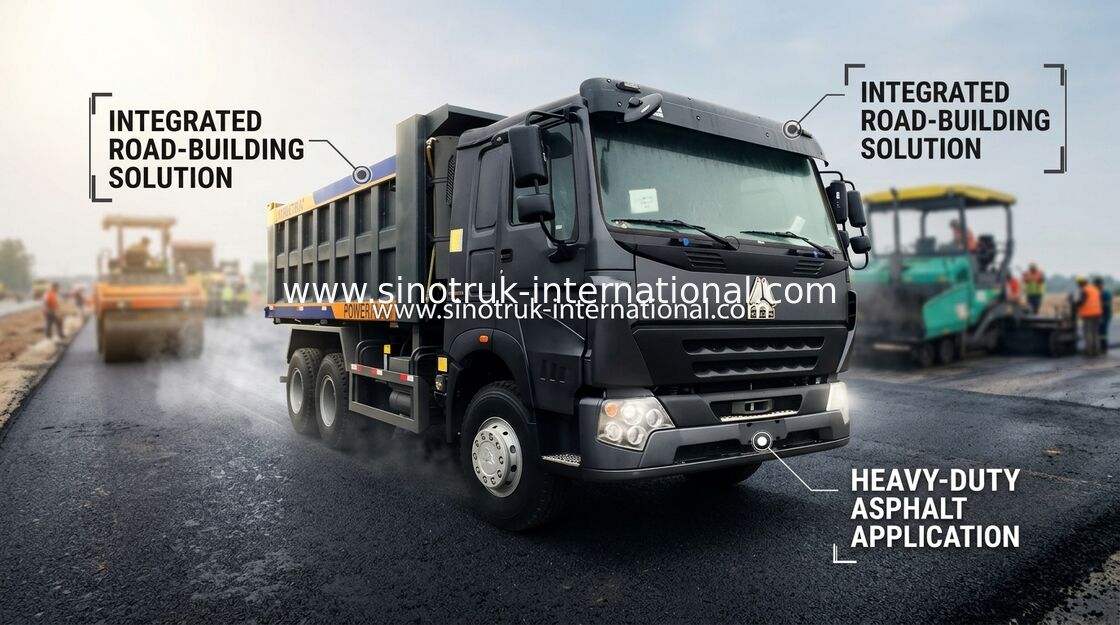

20 CBM 30 - 40 Ton SINOTRUK Dump Truck LHD 371 HP 6X4 Front Lifting System

20 CBM 30 - 40 Ton SINOTRUK Dump Truck LHD 371 HP 6X4 Front Lifting System

  • 20 CBM 30 - 40 Ton SINOTRUK Dump Truck LHD 371 HP 6X4 Front Lifting System
  • 20 CBM 30 - 40 Ton SINOTRUK Dump Truck LHD 371 HP 6X4 Front Lifting System
  • 20 CBM 30 - 40 Ton SINOTRUK Dump Truck LHD 371 HP 6X4 Front Lifting System
  • 20 CBM 30 - 40 Ton SINOTRUK Dump Truck LHD 371 HP 6X4 Front Lifting System
20 CBM 30 - 40 Ton SINOTRUK Dump Truck LHD 371 HP 6X4 Front Lifting System
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: SINOTRUK HOKA
সাক্ষ্যদান: ISO/3C/BV/IFA/SGS
Model Number: ZZ3255N3646B1
প্রদান:
Minimum Order Quantity: 1 Unit
মূল্য: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Product Name: Tipper Dump Truck Model: ZZ3255N3646B1
Drive type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Cargo body: 5600*2300*1500mm
Loading capacity: 30-40tons Transmission: HW15710
Steering: ZF Brand Hydraulic cylinder: Euro brand
লক্ষণীয় করা:

heavy dump truck

,

sinotruk howo dump truck

20CBM 30 - 40ton SINOTRUK Dump Truck LHD 371HP 6X4 HYVA brand Front Lifting system



Description:

20CBM 30 - 40ton SINOTRUK Dump Truck LHD 371HP 6X4 HYVA brand Front Lifting system

HOKA brand is the Leader of Heavy Duty Truck Industry Driving King On The Road.

HOWO A7 uses a lot of humanized design concept. Usually the driver into the cab has been plagued by the steering wheel and the seat of the distance between the smaller, while the A7 solved the puzzle. The driver in the park just located in the left side of the pedal pedal and steering wheel to the ground and vertical range, can be it is convenient for the driver to import the cab.



Finally you can try to shift the clever ".SMARTSHIFT is an automatic mechanical transmission (AMT), it is in the mechanical transmission and dry clutch on the basis of the electronic control unit controls the selector, the manipulation of.AMT clutch and shift and is usually used in the car on the AT structure of the turbine driven by be quite different. Hydraulic oil, hydraulic oil to drive the mechanical device model, often large efficiency loss of hydraulic oil driven, so the fuel consumption will rise. It should be said that the AMT mode is similar to AT, and the structure principle and MT is similar, can weigh their respective characteristics. In addition, the built-in transmission 4 in reverse, the operation is very simple, can meet the traffic demand under various conditions.



Adjust the seat to the most comfortable position, hold on the transmission of "F (function)" button and push forward, then step on the accelerator, A7 in a loud roar of the engine in the forward step. The empty driving, the driver through manual intervention forced upshift. Anyway this transmission, its reputation, clever to understand the purpose of the driver, timely shift up, effectively reduce the driver's shift step on the clutch brings physical exertion, so that they can be absorbed in to observe the road.



Just a moment, will imperceptibly speed up to about 80km/h, when the engine speed is maintained at 1500r/min, close to the maximum torque speed. A large area of the cab before the windshield and on both sides of the electrically adjustable rearview mirror provides an excellent view. The venue was arranged in the plane on the runway, almost full gallop A7 driven by strong body like when the plane took off as high-speed running of A7 fully and delightfully! However did not bring much noise, thanks to the good denoising performance of D12 engine assembly. The engine uses Denso a new generation of electronically controlled common rail system, the atomization degree is more precise.



Specifications:




20CBM 30 - 40ton SINOTRUK Dump Truck LHD 371HP 6X4 HYVA brand Front Lifting system
Model ZZ3257N3647B1
Drive Type 6×4
Engine

WD615.69 , 336HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW15710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3600+1350(mm)
Overall dimension 8375×2496×3450(mm)
Cargo body 5600×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1)low fuel consumption
2) strong enough engine

3)with all kinds of truck model, which can fulfil your requirement
4)the key parts adopt the world's top technology products
5)based on strong technical support and top level technology make the trucks with high

quality and more reliable

6)quick and efficient spare parts supply bring you more convenient

7)Optimized cargo body structure,light weight,high rigidity,large loading capacity

8)Using the high strength steel,it has long service life

9)Optimized the sealing structure has the better sealing effect.

10)Multiple box structures and device selections

11)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

running efficiency.

12) The front windshield and the combination of large mirrors to eliminate blind spots, excellent vision;

13) on the sleeper with safety protection net;

14)Electric cab lift system, reduce labor intensity, facilitate vehicle maintenance.

15)fast delivery time, we can arange production according to your needs exactly and

quickly

16) professional import and export dealing precedure, make customs clearance more high efficiency

17)competive price, cost-effective



20 CBM 30 - 40 Ton SINOTRUK Dump Truck LHD 371 HP 6X4 Front Lifting System 020 CBM 30 - 40 Ton SINOTRUK Dump Truck LHD 371 HP 6X4 Front Lifting System 1
