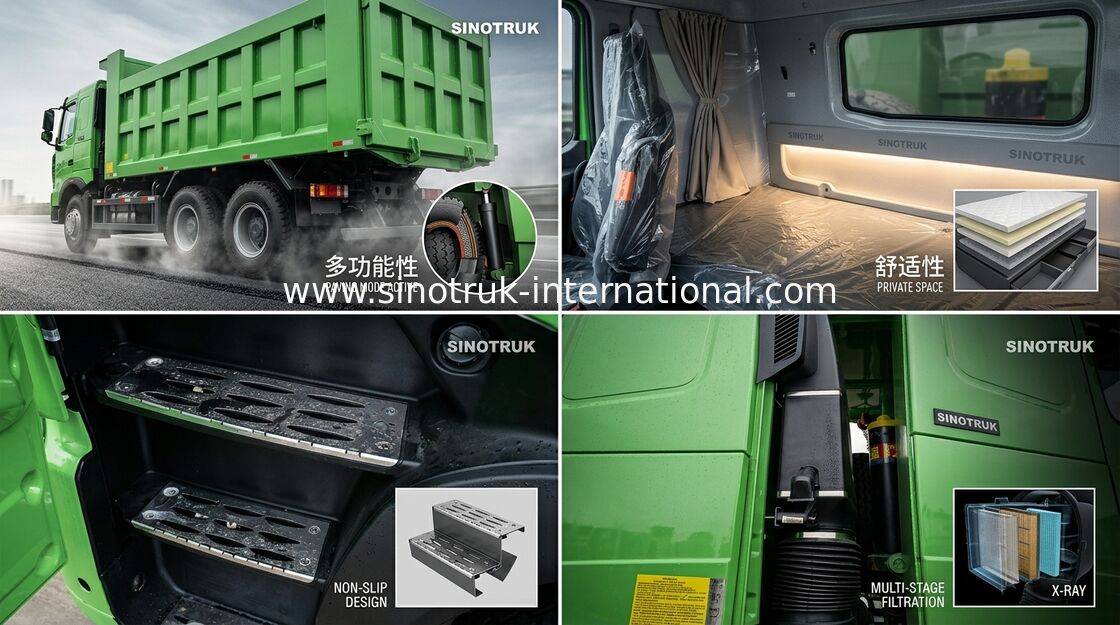

SINOTRUK HOWO Dump Truck A7 Front Lifting Hydraulic System 30 - 40 Tons RHD 6X4

SINOTRUK HOWO Dump Truck A7 Front Lifting Hydraulic System 30 - 40 Tons RHD 6X4

  • SINOTRUK HOWO Dump Truck A7 Front Lifting Hydraulic System 30 - 40 Tons RHD 6X4
  • SINOTRUK HOWO Dump Truck A7 Front Lifting Hydraulic System 30 - 40 Tons RHD 6X4
  • SINOTRUK HOWO Dump Truck A7 Front Lifting Hydraulic System 30 - 40 Tons RHD 6X4
  • SINOTRUK HOWO Dump Truck A7 Front Lifting Hydraulic System 30 - 40 Tons RHD 6X4
SINOTRUK HOWO Dump Truck A7 Front Lifting Hydraulic System 30 - 40 Tons RHD 6X4
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: SINOTRUK HOWO A7
সাক্ষ্যদান: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257M3847N1
প্রদান:
Minimum Order Quantity: 1 Unit
মূল্য: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Product Name: Tipper Dump Truck Model: ZZ3257M3847N1
Drive type: RHD 6X4 Emission Standard: Euro 2
Engine: WD615.62, 266HP Cargo body: 5800*2300*1500mm
Loading capacity: 30-40tons Cabin: A7-P
Thickness of cargo body: Floor: 8mm, side: 4mm
লক্ষণীয় করা:

heavy dump truck

,

commercial dump truck

Dump Truck SINOTRUK HOWO A7 Front Lifting Hydraulic system 30 - 40tons RHD 6X4



Description:

Dump Truck SINOTRUK HOWO A7 Front Lifting Hydraulic system 30 - 40tons RHD 6X4

This type product , with features of reliable structure , high loading capacity which can

load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide

acceplication.



In cooperation with the international first-class supplier of welding robot according to the advanced automatic assembly line, so that the overall error is reduced to the lowest; the strength of the body leading front collision cab can instantly shift after 20 cm; no sharp corners and uses a lot of design of flame retardant materials; design of seat belt and bumper internal inertial rotation preventing device before drilling the vehicle safety performance, only domestic. Solebar manufacturing of new high strength materials, tensile strength is more than 820Mpa; the first use of the disc tic, 430 pull type diaphragm spring clutch, the optimized design of the new technology and HW12,16 series of single axle double bridge, mature and reliable, constitute excellent performance matching.





Specifications:




Dump Truck SINOTRUK HOWO A7 Front Lifting Hydraulic system 30 - 40tons RHD 6X4
Model ZZ3257N3847N1
Drive Type 8×4
Engine

WD615.62 , 266HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW13710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1) Using the most advanced engine, transmission system, route, the occupants on the top heavy truck driving convenience at the same time, to achieve the minimum fuel consumption; front disc brakes, ZF steering system greatly improves the security.

2)low fuel consumption
3) strong enough engine

4)with all kinds of truck model, which can fulfil your requirement
5)the key parts adopt the world's top technology products
6)based on strong technical support and top level technology make the trucks with high

quality and more reliable

7)Optimized cargo body structure,light weight,high rigidity,large loading capacity

8)Using the high strength steel,it has long service life

9)Optimized the sealing structure has the better sealing effect.

10)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running

efficiency.

11)Multiple box structures and device selections

12)competive price, cost-effective
13)quick and efficient spare parts supply bring you more convenient
14)fast delivery time, we can arange production according to your needs exactly and

quickly

15) professional import and export dealing precedure, make customs clearance more high efficiency



SINOTRUK HOWO Dump Truck A7 Front Lifting Hydraulic System 30 - 40 Tons RHD 6X4 0SINOTRUK HOWO Dump Truck A7 Front Lifting Hydraulic System 30 - 40 Tons RHD 6X4 1
